Blood flow oxygen and glucose delivery
Oxygen and glucose have different delivery and membrane-entry routes. Reduced delivery and impaired cellular use are different hypotheses.
Blood flow oxygen and glucose delivery
Scoped educational mechanism
Open larger diagram · Full-size PNG · Diagram page
Read the diagram explanation and sources

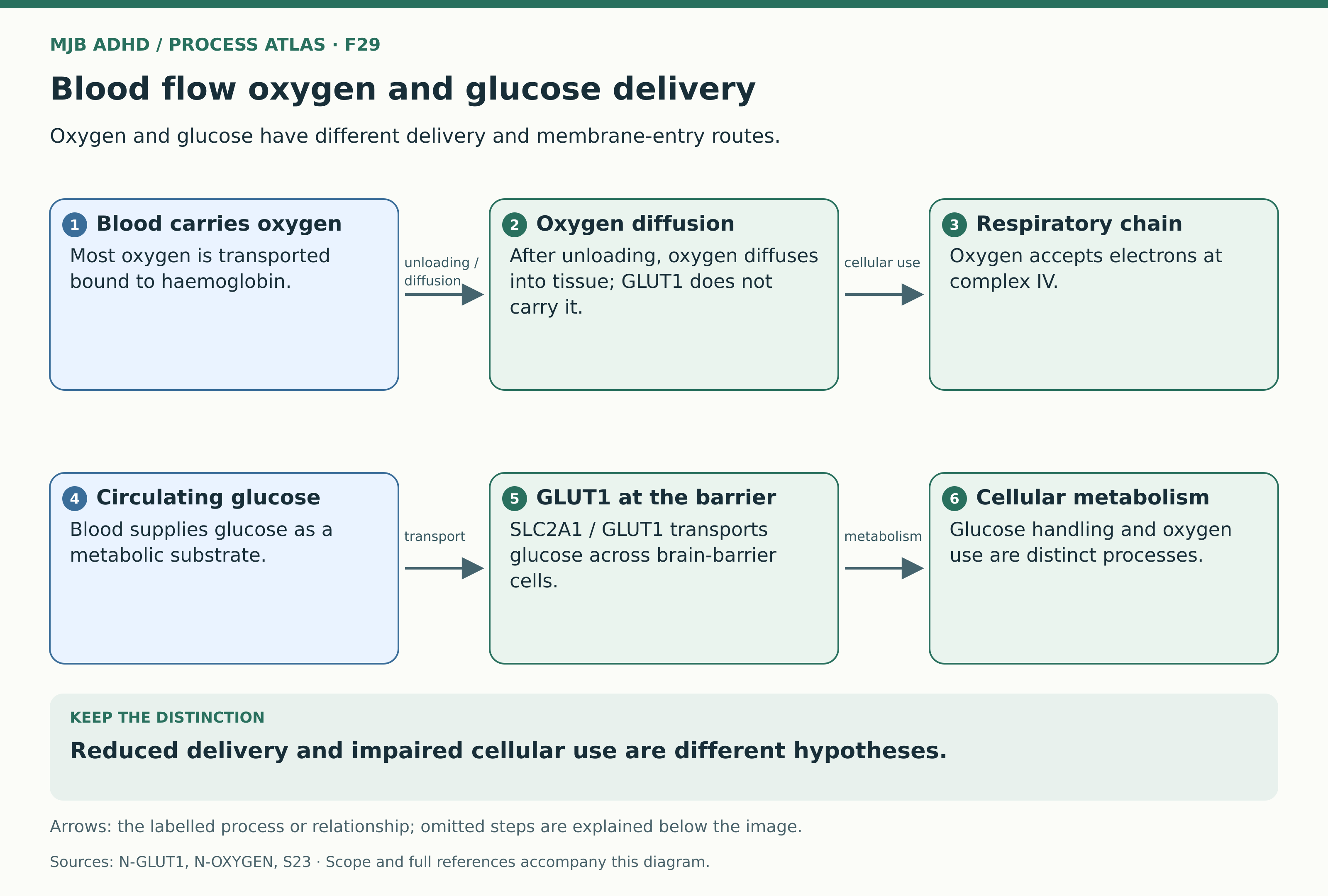

Blood carries oxygen, largely on haemoglobin, and glucose in solution. Oxygen leaves blood and diffuses through tissue; glucose uses transport systems including GLUT1 at the blood-brain barrier. The respiratory chain uses oxygen as a terminal electron acceptor. Transport/delivery limitations and defects of intracellular metabolism are different possibilities requiring their own evidence. ADHD alone demonstrates neither. This corrected diagram removes the implication that oxygen crosses through GLUT1.
- Blood carries oxygen → Oxygen diffusion: unloading / diffusion
- Oxygen diffusion → Respiratory chain: cellular use
- Circulating glucose → GLUT1 at the barrier: transport
- GLUT1 at the barrier → Cellular metabolism: metabolism
What the diagram shows
Blood carries oxygen, largely on haemoglobin, and glucose in solution. Oxygen leaves blood and diffuses through tissue; glucose uses transport systems including GLUT1 at the blood-brain barrier. The respiratory chain uses oxygen as a terminal electron acceptor. Transport/delivery limitations and defects of intracellular metabolism are different possibilities requiring their own evidence. ADHD alone demonstrates neither. This corrected diagram removes the implication that oxygen crosses through GLUT1.
