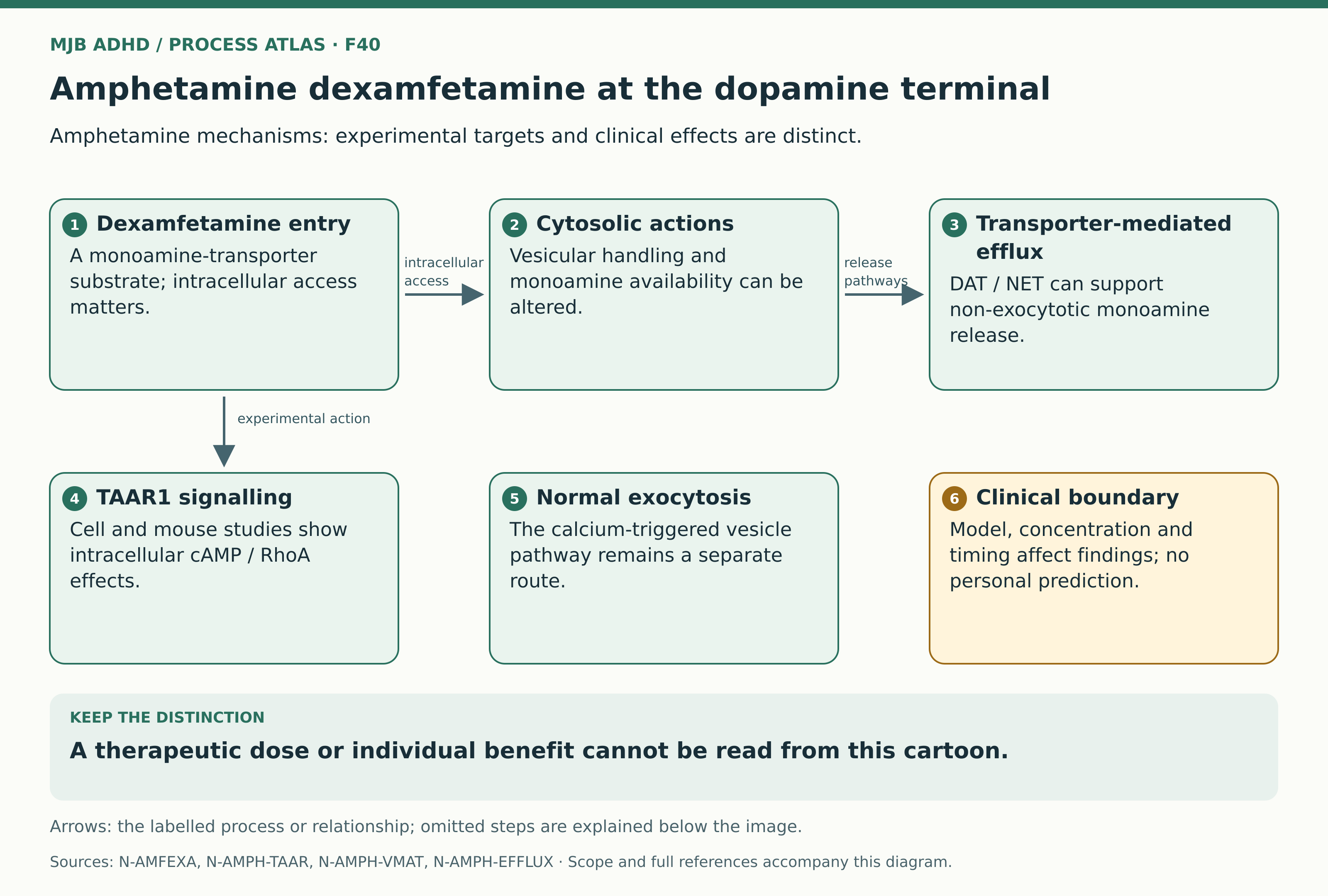

Amphetamine dexamfetamine at the dopamine terminal

Amphetamine mechanisms: experimental targets and clinical effects are distinct. A therapeutic dose or individual benefit cannot be read from this cartoon.

Amphetamine dexamfetamine at the dopamine terminal

Scoped educational mechanism

Amphetamine dexamfetamine at the dopamine terminal. Amphetamine mechanisms: experimental targets and clinical effects are distinct.
Amphetamine mechanisms: experimental targets and clinical effects are distinct. A therapeutic dose or individual benefit cannot be read from this cartoon.MJB ADHD · original vector reconstruction · Reviewed 2026-10-13

Open larger diagram · Full-size PNG · Diagram page

Read the diagram explanation and sources

Amphetamine acts as a substrate at monoamine transporters and can alter intracellular monoamine handling and support transporter-mediated efflux. Experimental work also identifies intracellular TAAR1 signalling and transporter trafficking. Vesicular stores affect availability, but knockout-culture evidence shows vesicular transport is not an absolute prerequisite for every experimental amphetamine action. Calcium-triggered exocytosis is therefore kept separate from efflux. Models, concentration and exposure conditions limit translation. The UK dexamfetamine SmPC does not claim a fully settled explanation of behavioural benefit in ADHD. No dose, efficacy, safety or individual mechanism is inferred.

  • Dexamfetamine entry → Cytosolic actions: intracellular access
  • Cytosolic actions → Transporter-mediated efflux: release pathways
  • Dexamfetamine entry → TAAR1 signalling: experimental action

What the diagram shows

Amphetamine acts as a substrate at monoamine transporters and can alter intracellular monoamine handling and support transporter-mediated efflux. Experimental work also identifies intracellular TAAR1 signalling and transporter trafficking. Vesicular stores affect availability, but knockout-culture evidence shows vesicular transport is not an absolute prerequisite for every experimental amphetamine action. Calcium-triggered exocytosis is therefore kept separate from efflux. Models, concentration and exposure conditions limit translation. The UK dexamfetamine SmPC does not claim a fully settled explanation of behavioural benefit in ADHD. No dose, efficacy, safety or individual mechanism is inferred.
